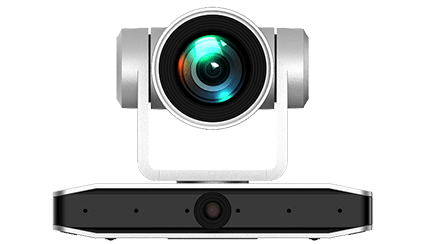

AT2150 - 4K Intelligent Dual-lens Camera

Accurate tracking enables hands-free, engaged conferences.

4K ultra high definition

Control protocols

Network protocols

Autofocus technology

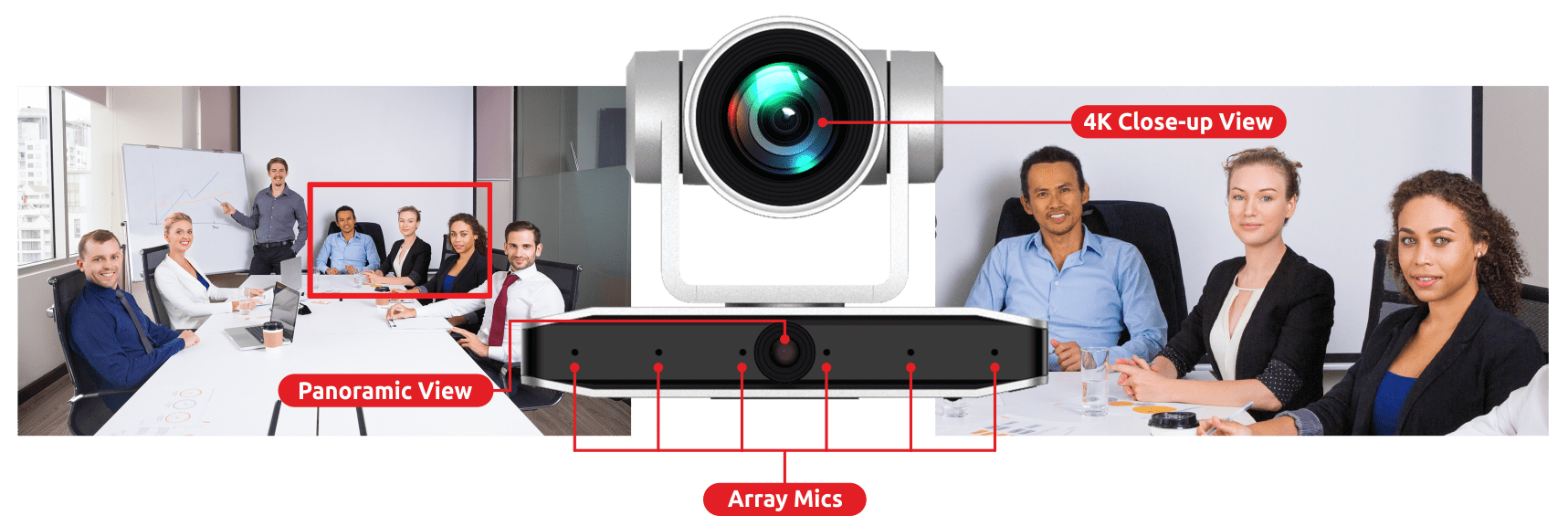

Panoramic View Lens

4K Lens Deliver UHD Image

8.5 million pixel high-quality SONY CMOS image sensor, the maximum resolution can reach 4K (3840×2160), and the 4K output frame rate can reach up to 30 frames per second. Equipped with excellent 3A image intelligent algorithm, bringing 4K ultra-high-resolution high-quality images.

Other Features

Explore additional innovative features designed to enhance performance, efficiency, and user experience.

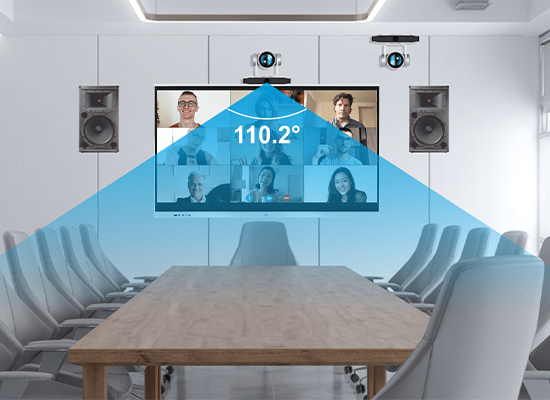

Panoramic View Lens | 110.2° Ultra Wide Viewing Angle

110.2° ultra wide panoramic lens provide broad range of view for close-up lens, making it easier to detect and capture anyone walking into the meeting room.

AI Smart Framing

With its integrated high-speed processor and facial recognition system, it can recognize participants automatically and present the best possible framing. The camera will automatically adjust to ensure that everyone is in the center of the screen whenever someone moves or enters the room while it is within the panoramic view range.

6 Meters Audio Range - Crystal-clear Voice

Built in 6 omnidirectional mics arrays with audio range up to 6 meters.

Advanced AI noise reduction and 3A audio algorithm make the audio crystal clear like face-to-face communication.

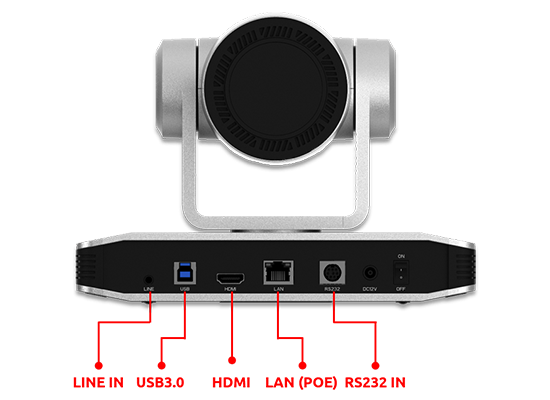

USB3.0 Plug-and-play

Ease of installation and use
USB3.0 high-speed transmission
Plug-and-play, start an awesome virtual meeting with ease

Salient Features

Model	Function	Description
PTZ	Rotating Angle	Pan：±110°； Tilt：-30°+30°
PTZ	Control Speed	Pan：0.1°/s～100°/s；Tilt：0.1°/s～70°/s
AI	Smart Framing	Group Framing, Face Detection
AI	Voice Tracking	Voice Localization, Voice Tracking on/off
Mics	6 mics arrays with 6 meters audio range
Interface	Back Panel	HDMI, LAN(POE), USB3.0, A-IN, RS232-IN, DC12V Power Supply
	Video Output	HDMI, LAN, USB3.0
	Video Compression Formats	LAN：H.264、H.265 USB 3.0：MJPG、H264、YUY2、NV12
	Audio Input	Dual channel 3.5mm linear input
	Audio Output	HDMI、LAN、USB3.0
	Audio Compression	AAC、MP3、G.711A
	Network Port	10M/100M/1000M自适应以太网口，支持POE供电，支持音视频输出
	Network Protocols	RTSP、RTMP、ONVIF、GB/T28181、VISCA OVER IP、IP VISCA、RTMPS、SRT，support remote upgrade, remote restarting, and remote reset.
	Control Jack	RS232-IN
	Serial Port Communication Protocols	VISCA/Pelco-D/Pelco-P Baud Rate115200/38400/9600/4800/2400
	USB Communication Protocols	UVC（Video Communication Protocols），UAC（Audio Communication Protocols）
	Power Supply	HEC3800 power socket (DC12V)
	Power Adapter	Input: AC110V~AC220V ；Output: DC12V/2.5A
Product Dimension	220（L）mm×144mm（W）×159mm（D)
